Databricks¶

Last updated: 2026-02-19

Classic Compute Setup¶

1. Create a Cluster¶

To create a cluster, navigate to Classic Compute → Create Cluster. The cluster Access Mode must be set to No isolation shared. This is required for loading custom Spark data sources on Databricks. You can set this by using Policy: Unrestricted and configuring the access mode under Advanced cluster configuration.

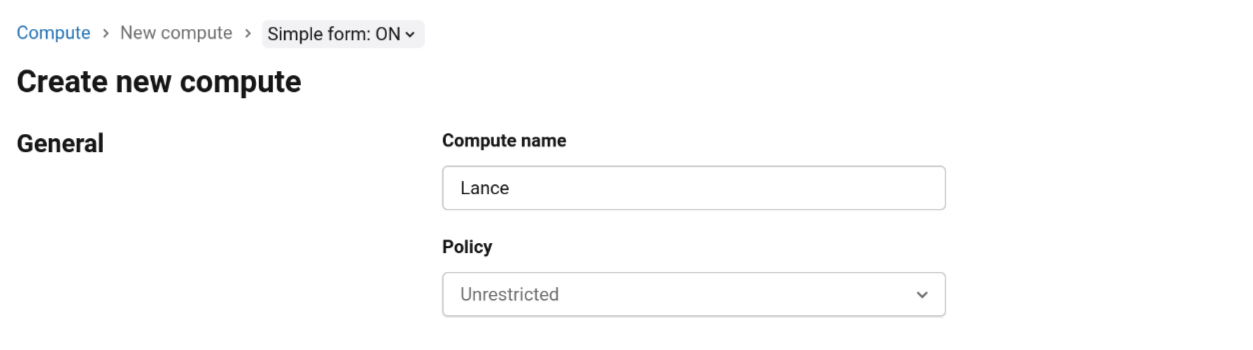

Compute policy

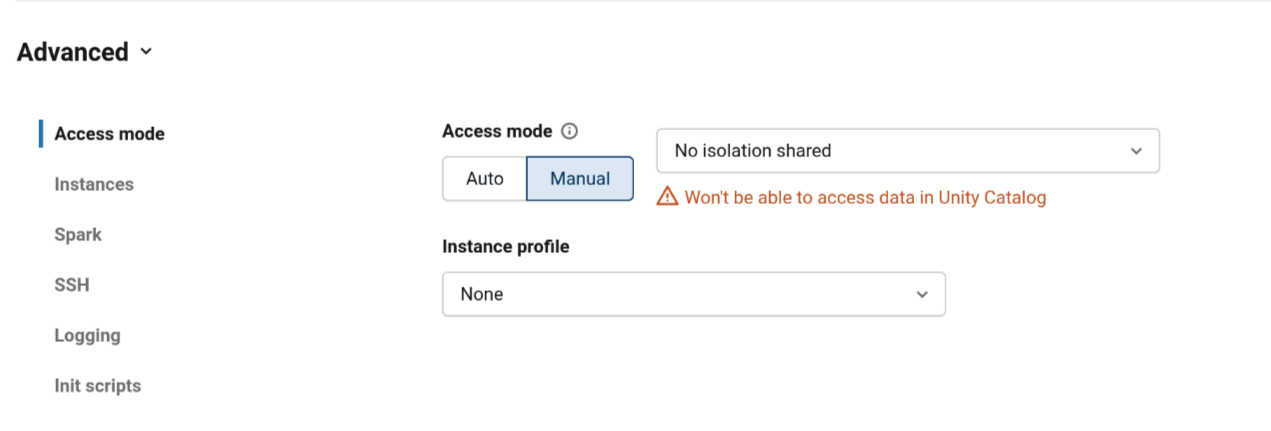

Compute access mode

Note

This guide is tested with Databricks Runtime 16.4 LTS. Other runtimes may work but have not been tested.

2. Install the Lance Spark Library¶

The Lance Spark bundled JAR is the recommended artifact for Databricks. It includes all dependencies, which avoids dependency conflicts and eliminates the need to manually install additional libraries.

To install the JAR, navigate to Classic Compute → <cluster> → Libraries → Install New and choose the Lance Spark JAR source:

Maven Central

Search for the Lance Spark bundle artifact on Maven Central (e.g., org.lance:lance-spark-bundle-3.5_2.12).

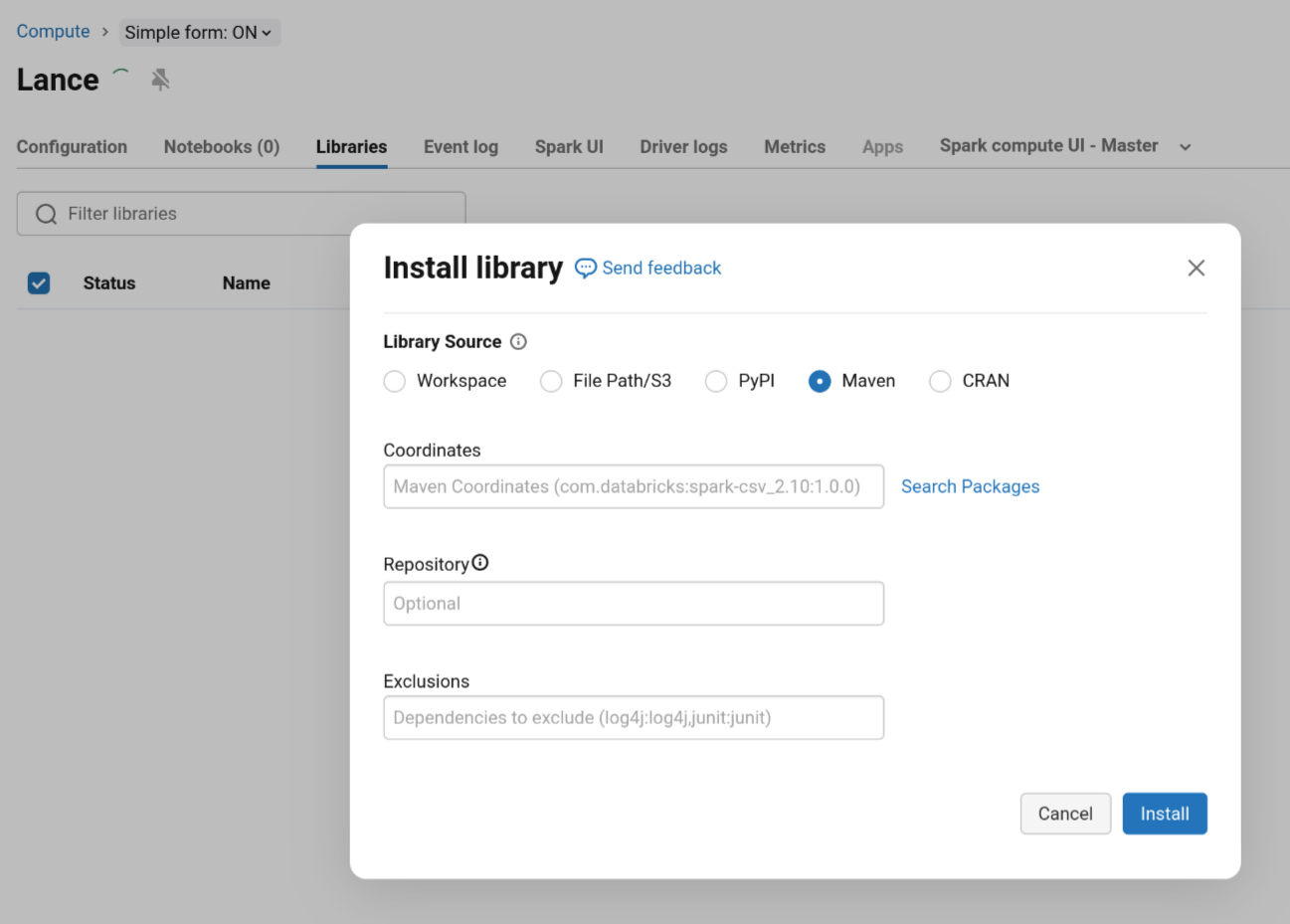

Install libraries

Note

Some namespace implementations (e.g., to interface with external catalogs) may require additional libraries from the lance-namespace repository. These are also published on Maven Central and can be installed alongside the Lance Spark bundle using the same process.

3. Configure Spark¶

Navigate to Classic Compute → <cluster> → Advanced Configuration → Spark Config to populate namespace configuration options. The catalog must use LanceNamespaceSparkCatalog; other catalog-specific and namespace-specific properties should be set as needed. Refer to the Lance Spark Config docs for all available namespace implementations.

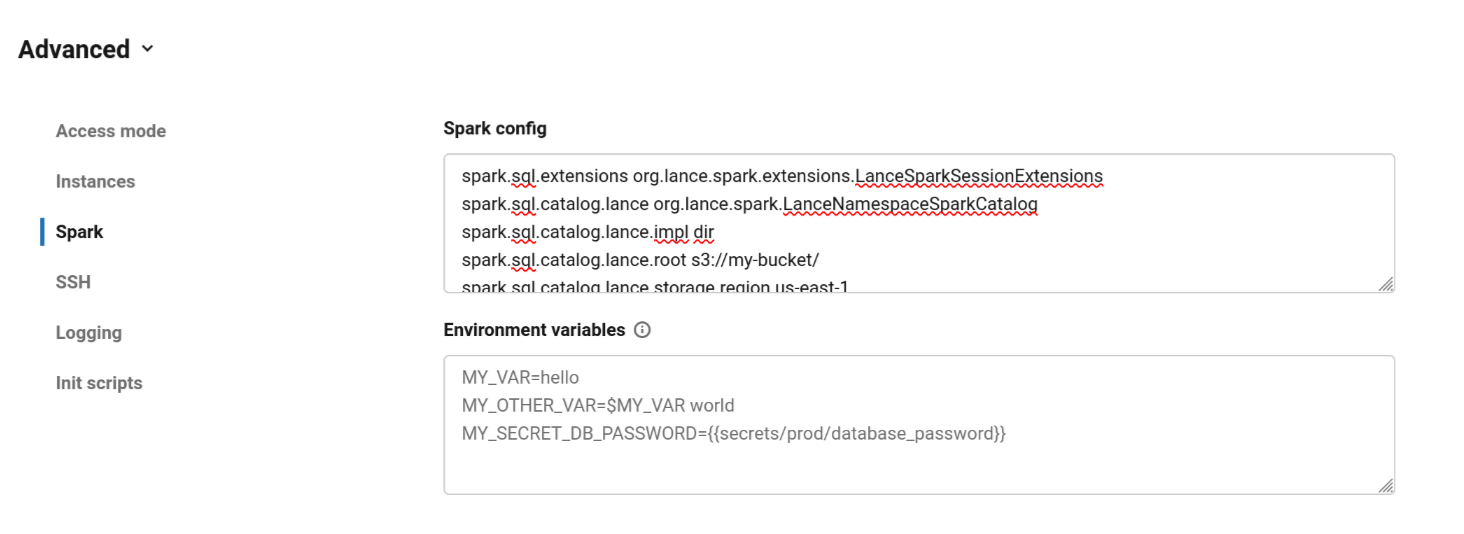

Spark Configuration

4. Verify Installation¶

To open a Databricks notebook, navigate to Workspace → <folder> → Create → Notebook. Use the dropdown to connect to the cluster you configured in the previous steps.

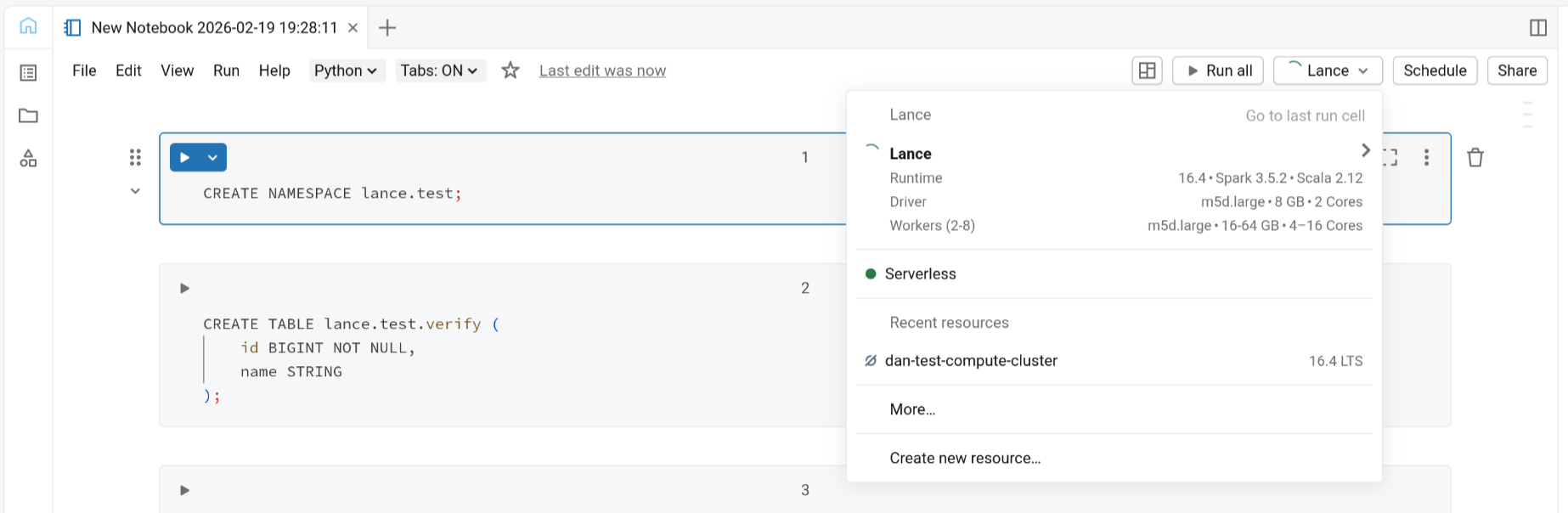

Create Notebook

To verify that the Lance Spark library is properly installed and configured, run the following SQL commands in the notebook:

CREATE NAMESPACE lance.test;

CREATE TABLE lance.test.verify (
    id BIGINT NOT NULL,
    name STRING
);

SHOW TABLES IN lance.test;

INSERT INTO lance.test.verify VALUES
    (1, 'Alice'),
    (2, 'Bob');

SELECT * FROM lance.test.verify;

Known Limitations¶

Supported Environments¶

Environment	Catalog	Support Status	Notes
Classic Compute	Unity Catalog	❌ Not Supported	Does not support registering any data sources that are not part of the official Databricks Runtime
Classic Compute	Hive Metastore	❌ Not Supported	Lance tables are stored as generic Hive Spark tables that can only be processed by Spark
Classic Compute	Lance Namespace	✅ Supported	Recommended approach; bypasses Databricks catalog integration
SQL Warehouse	—	❌ Not Supported	Does not support custom Spark data sources or SQL extensions

SQL Extensions Not Available¶

Lance SQL extensions cannot currently be loaded in Databricks Classic Compute. See Spark SQL Extensions for a full list of features that are unavailable.

When this is resolved, you will be able to enable extensions by adding the following to your Spark Config:

spark.sql.extensions org.lance.spark.extensions.LanceSparkSessionExtensions
